STARTEST IMAGES GALLERY

 MakNewt150

Type: Maksutov Newtonian
Aperture: 150 mm
Focal length:900 mm(F6)

startest Images copyright
Markus Ludes (c) 2001

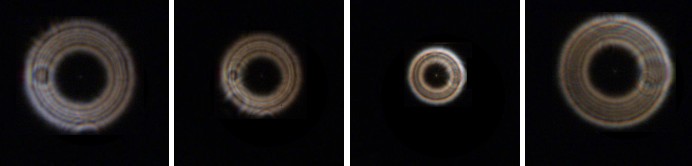

Inside Focus

Inside Focus

Outside Focus

Outside Focus

This is a 6"F/6 (152/900) Maksutov Newtonian of the lower level quality. It has very smooth optics, strehl will be at least 96 % maybe 97% and show an crisp airydisc with a fainter 1st diffraction ring. The central obstruction looks bigger, because it was tested against the 10"F/5.5 MN with 57 mm secondary. My rating on this MN is about 1/5 wavefront p.t.v. Due the smooth optics it will be very hard to tell any difference against an better sample, if you observe only infocus.

Markus Ludes (APM)
